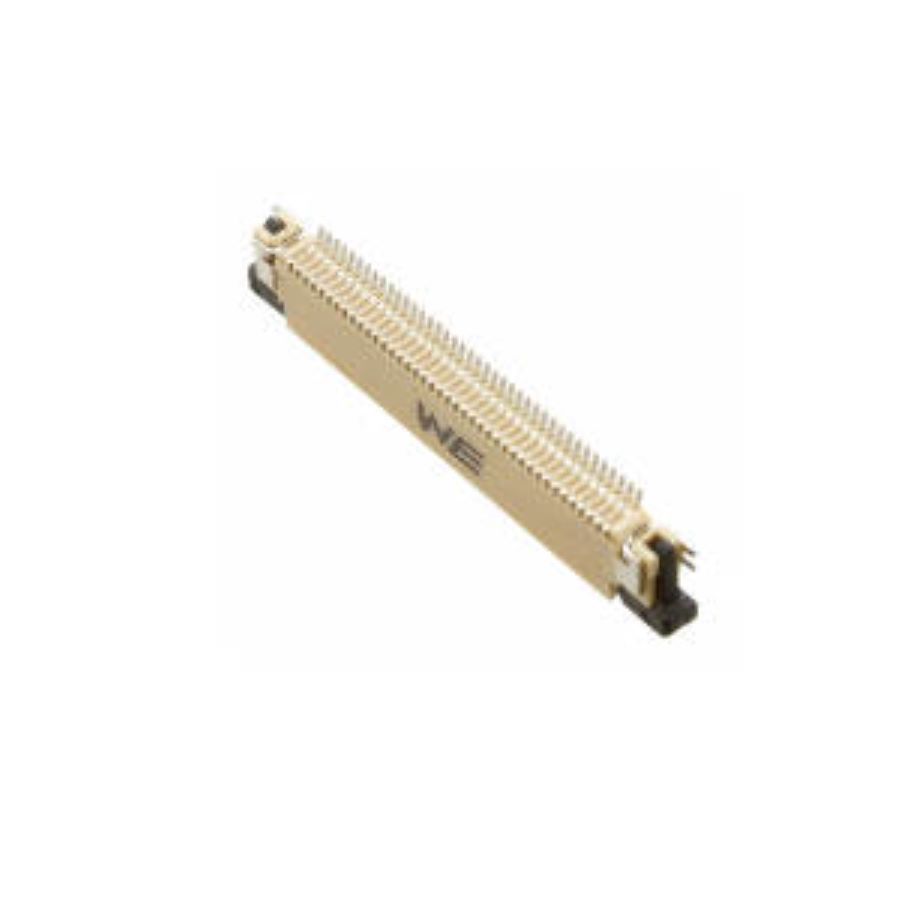

68714014022
Manufacturer:
Wurth Electronics
Mfr.Part #:
68714014022
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:40 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 26.5 mm |
| Width | 2.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 40 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Operating Supply Voltage | 50 V |
| Gender | Receptacle |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Housing Material | Liquid Crystal Polymer |
| Contact Location | Top |
| Contact Resistance | 20 mΩ |
| Actuator Material | Liquid Crystal Polymer, Polymer |
Stock: 3115
Distributors
pcbx
pcbxUnit Price$1.30736
Ext.Price$1.30736
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30736 | $1.30736 |
| 10 | $1.26515 | $12.65150 |
| 25 | $1.22089 | $30.52225 |
| 50 | $1.17818 | $58.90900 |
| 100 | $1.09058 | $109.05800 |
| 300 | $1.04652 | $313.95600 |
| 500 | $1.00424 | $502.12000 |
| 1000 | $0.91664 | $916.64000 |
